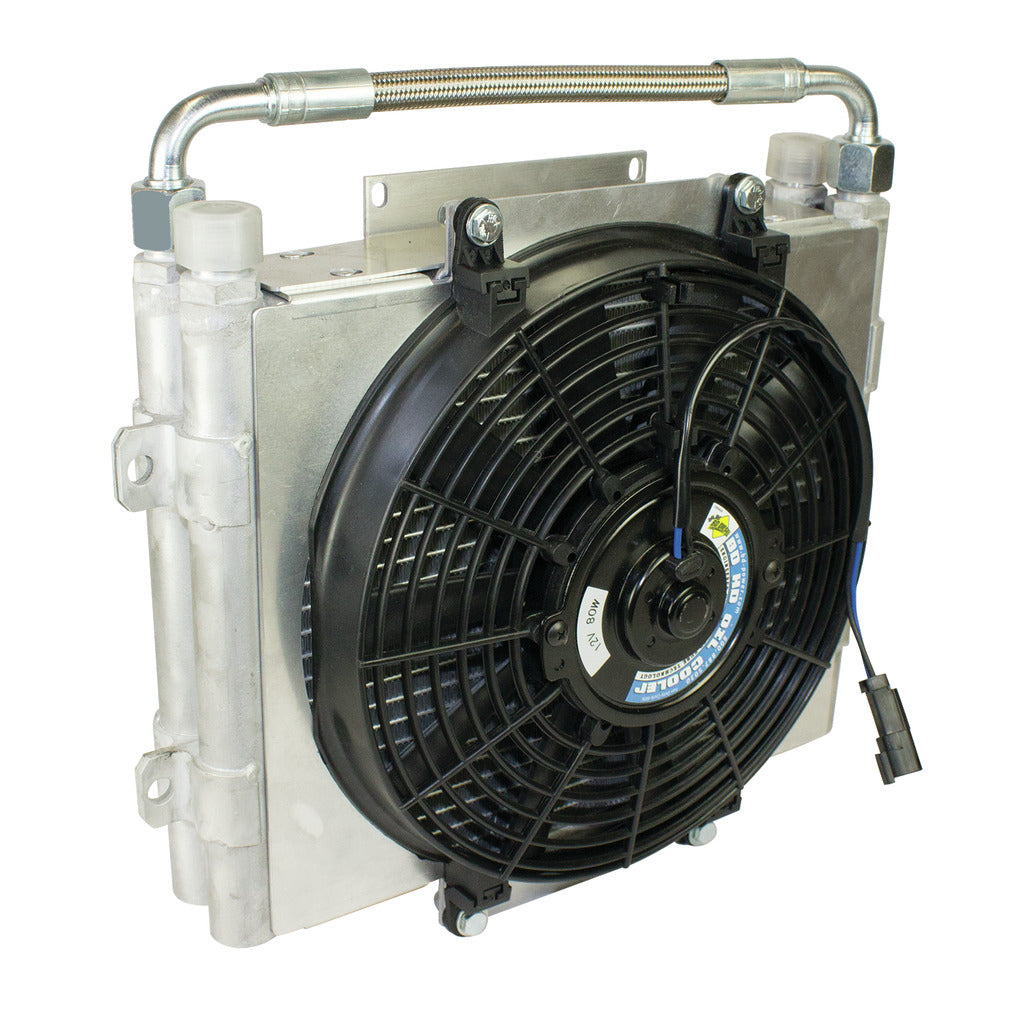

Xtrude Trans Cooler Double Stacked (No Install Kit)

[shortdesc]

HOT transmission oil has to be COOLED to keep you on the track. Double stacked cores deliver over 40,000 BTU/HR of cooling and over 350% temperature drop versus the factory system - 36% better temperature drop than BD's standard single core kit. The 200 Micro Extruded passages provide a large surface area to transfer heat for external air flow cooling while turbulent oil flow design promotes a more complete cooling. Large 5/8-inch ports prevents inlet/outlet restriction and furnace brazed rails have been tested to 300psi of pressure. The thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan offers ultimate automatic oil temperature control.

• Cooler Assembly Only
• Double stacked cores deliver over 40,000 BTU/HR of cooling
• Over 350% temperature drop versus the factory system
• 136% better temperature drop than XTRUDED single core kit
• Motor is IP54 with 65% duty cycle

Parts

• 12-Months
• 24,000 Miles

• Exceeding the duty cycle may result in voiding the warranty
• Intended to be used in conjunction with factory transmission coolers and not as stand-alone units

[/shortdesc][product_line]TRANS COOLERS[/product_line][product_meta_keywords]1300601-5.5-DS, Chevy/GM, Dodge, Ford, 5.9L Cummins 03-04, 5.9L Cummins 04.5-07, 5.9L Cummins 94-98 12 Valve, 5.9L Cummins 98.5-02 24-Valve, 6.0L Powerstroke 03-07, 6.4L Powerstroke 08-10, 6.7L Cummins 07.5-12, 6.7L Cummins 13-18, 6.7L Cummins 19-up, 6.7L Powerstroke 11-16, 6.7L Powerstroke 17-up, 7.3L Powerstroke 99-03, Duramax 6.6L 01-04 LB7, Duramax 6.6L 04.5-06 LLY, Duramax 6.6L 06-07 LBZ, Duramax 6.6L 07.5-10 LMM, Duramax 6.6L 11-16 LML-LGH, Duramax 6.6L 17-up L5P, Transmission, Trans Coolers, Xtrude Trans Cooler - Double Stacked (No Install Kit)[/product_meta_keywords]
