Xtrude Transmission Cooler with Fan - Complete Kit 3/8in Lines

[shortdesc]

•

  PART # 1061716
  Deep Sump Trans Pan Ford Power Stroke E4OD/4R100/5R110 1989-2010

  REGULAR
  $552.95 CAD

  BUNDLE
  $497.66 CADSAVE $55.30

  VIEW ADD

Coolers, providing 22% more cooling over other designs. The 200 Micro Extruded passages provide a large surface area to transfer heat for external air flow cooling while turbulent oil flow design promotes a more complete cooling. Large 5/8-inch ports prevents inlet/outlet restriction and furnace brazed rails have been tested to 300psi of pressure. The thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan offers ultimate automatic oil temperature control. This combination gives BD's Xtruded Transmission Oil Cooler a rating of 33,930 BTU/HR and in excess of 30,000 GVW! Xtruded Transmission Oil Cooler packages come complete with all fittings, clamps, hoses, hardware and a Build-It-Yourself galvanized bracket kit for quicker and cleaner installation - no wasting time fabricating brackets out of scrap metal. The pre-wired loomed harness with fuse and relay comes with OEM style sealed connectors to resist elements and give factory-like install look.

• 22% more cooling over other designs

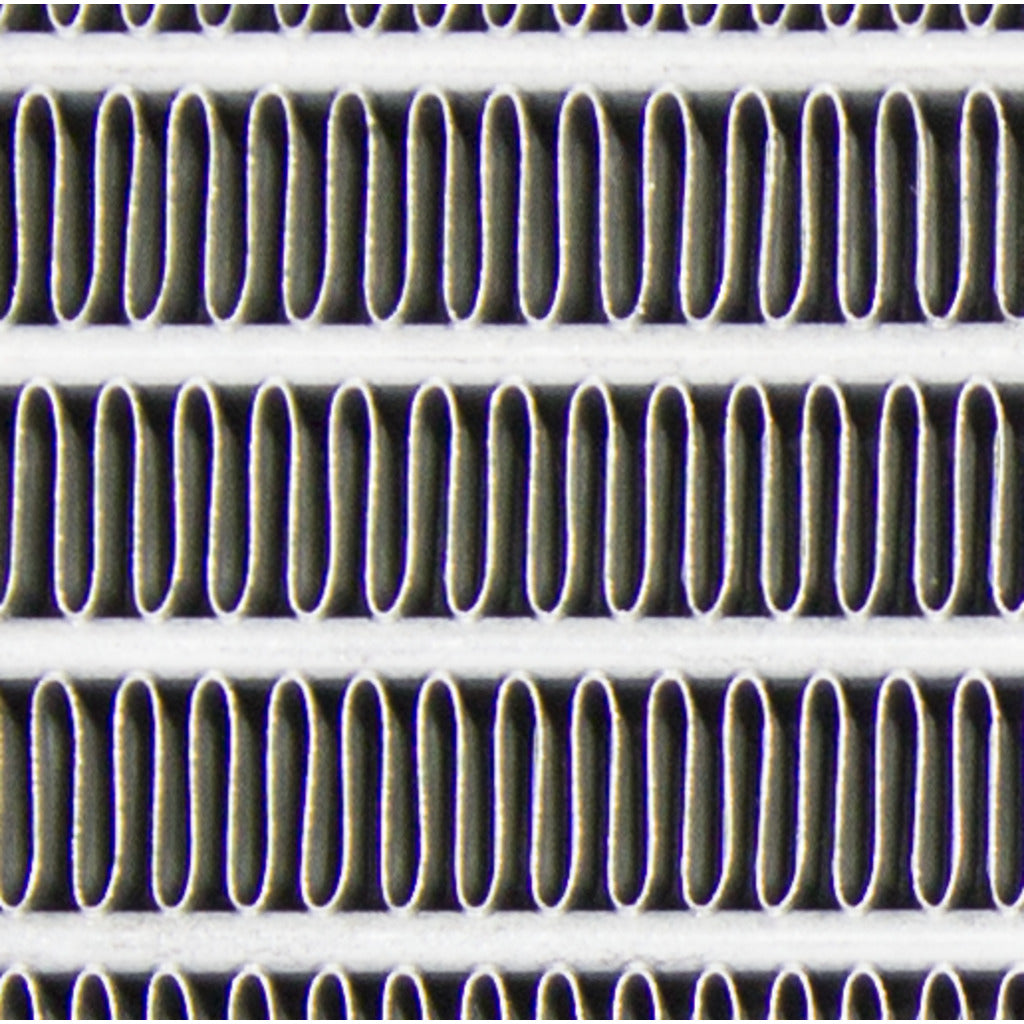

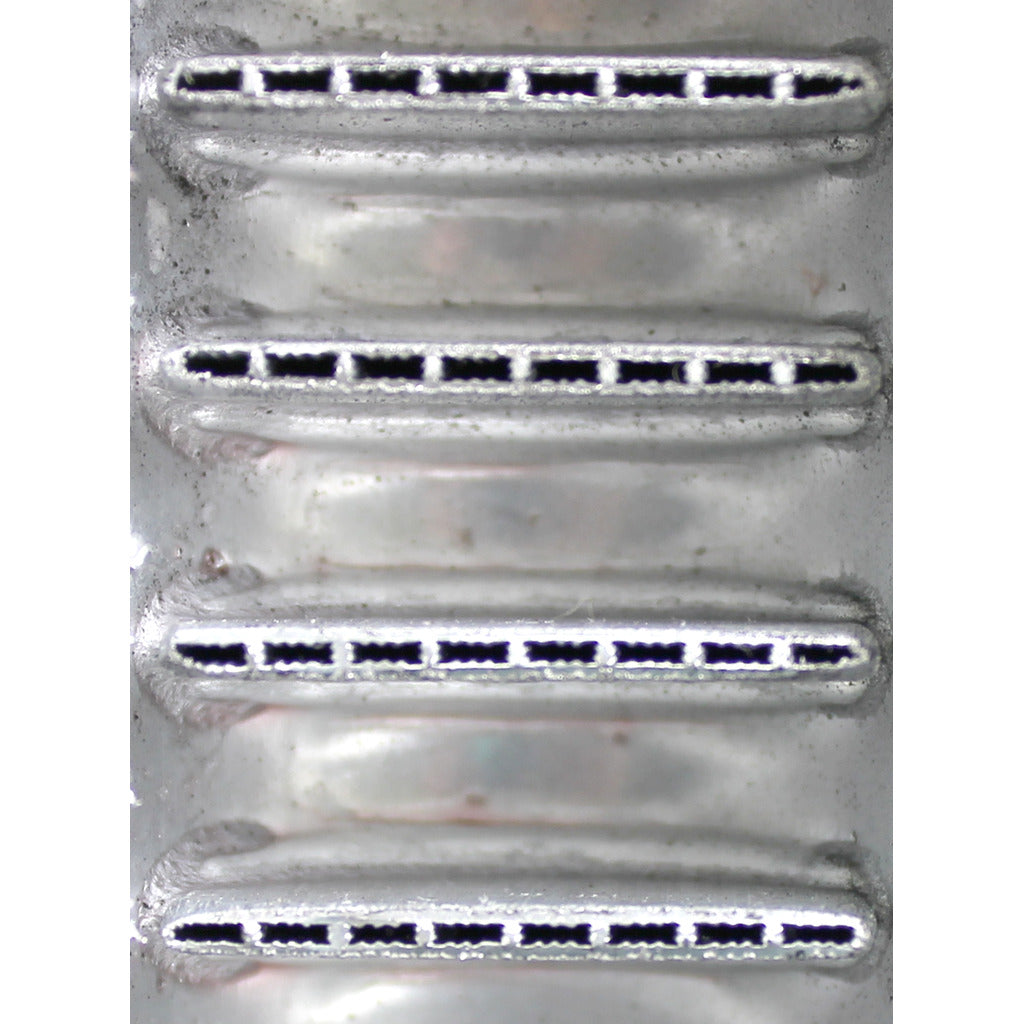

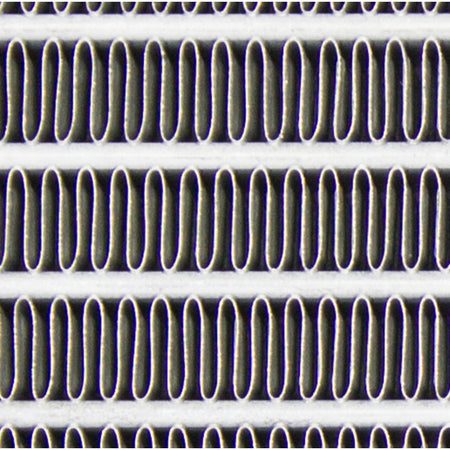

• 200 Micro Extruded passages
• Large surface area to transfer heat for external air flow cooling
• Turbulent oil flow design promotes a more complete cooling
• Large 5/8-inch ports prevents inlet/outlet restriction
• Furnace brazed rails have been tested to 300psi of pressure
• Thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan
• 33,930 BTU/HR and in excess of 30,000 GVW!

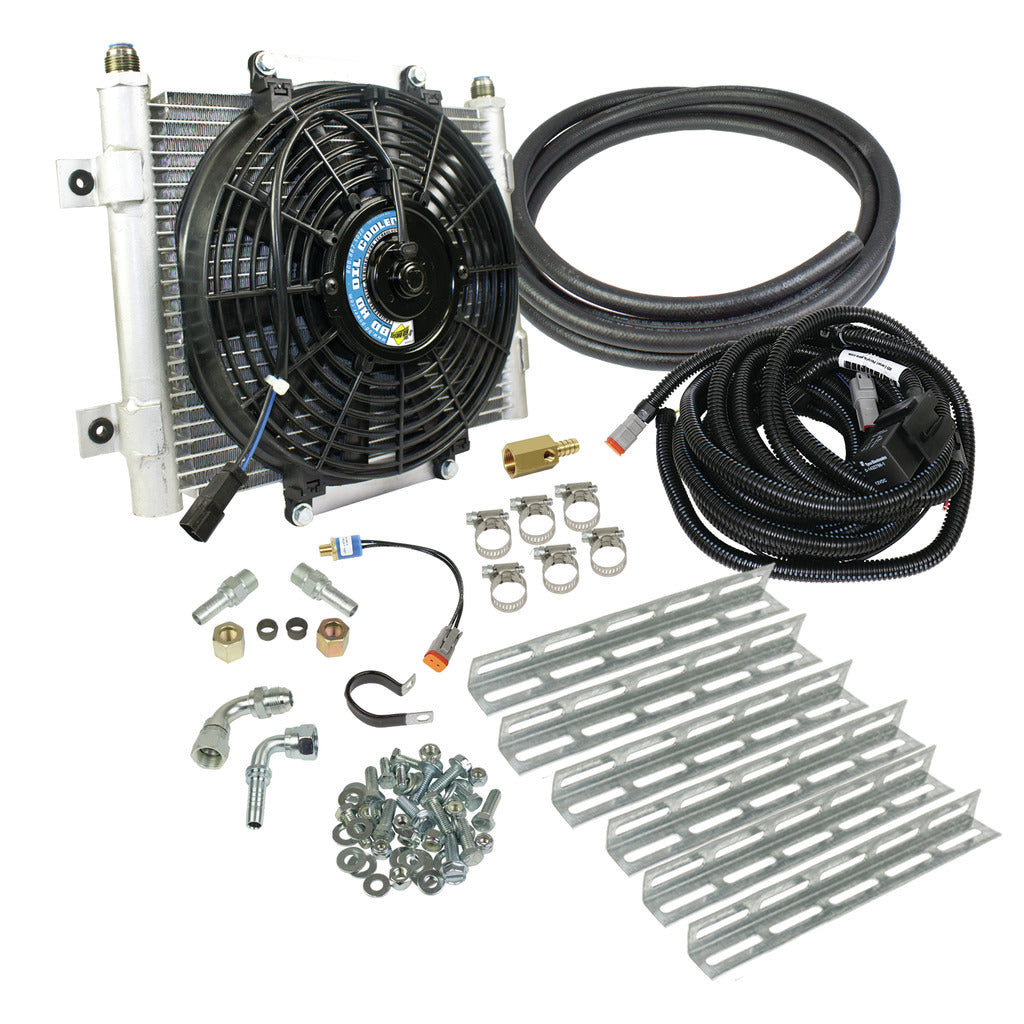

• Kits complete with all fittings, clamps, hoses and hardware

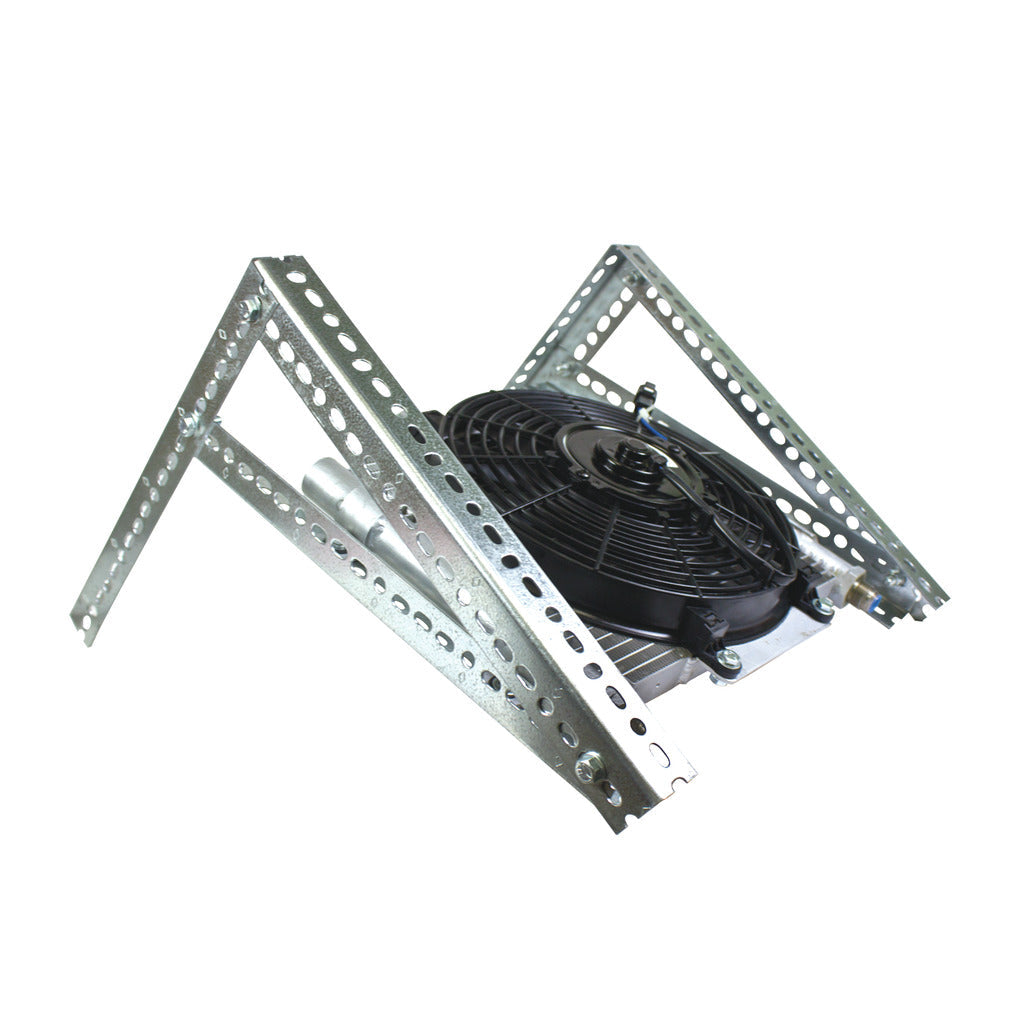

• Build-It-Yourself galvanized bracket kit for quick and easy installation - no wasting time fabricating brackets out of scrap metal
• The pre-wired loomed harness with fuse and relay comes with plug-in connectors
• Chevy 1999-2000 4L80E - 3/8-inch Cooler Lines
• Ford 1999-2003 4R100 - 3/8-inch Cooler Lines

• 3 Hours 30 Minutes

Parts

• 12-Months
• 24,000 Miles

• Intended to be used in conjunction with factory transmission coolers and not as stand-alone units
